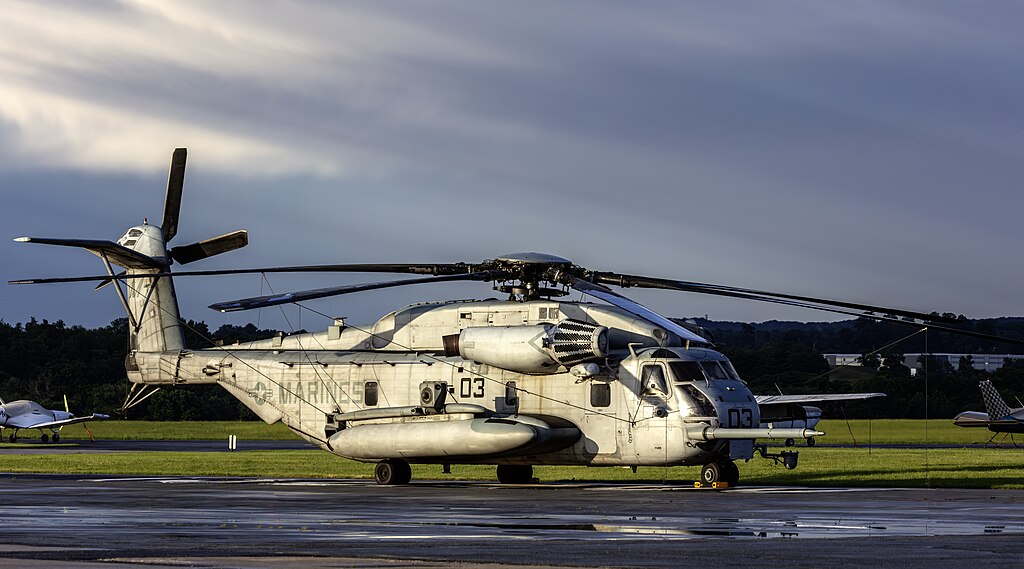

Photo: Acroterion, CC BY-SA 4.0, via Wikimedia Commons
The CH-53 Super Stallion is the heaviest and most powerful helicopter in the U.S. military inventory. Built by Sikorsky and operated primarily by the U.S. Marine Corps, the CH-53 family has been a cornerstone of heavy-lift vertical aviation since the 1960s — and it remains in active service today in its latest incarnation as the CH-53K King Stallion. Keeping these aircraft mission-ready requires a reliable supply of certified spare parts, and sourcing those parts correctly is more complex than for many other platforms.
This guide covers everything CH-53 operators and depot maintenance teams need to know about sourcing Super Stallion spare parts: the platform’s maintenance demands, the most critical component categories, the certification requirements that govern parts supply, common sourcing challenges, and how Rotair Aerospace Corporation supports the CH-53 fleet with dedicated inventory and overhaul capabilities.
The CH-53 Family: A Platform Overview
The CH-53 designation covers several distinct variants, each with its own configuration and operational role. The three most significant from a current maintenance perspective are:
- CH-53D Sea Stallion: The original production variant, now largely retired from U.S. service but still operated by international customers including Israel and Austria. Many legacy parts remain in active demand for these operators.
- CH-53E Super Stallion: The three-engine, seven-blade variant that represents the bulk of the current USMC heavy-lift fleet. The CH-53E introduced substantially greater lift capability over the CH-53D and features a more complex drivetrain and dynamic components system.
- CH-53K King Stallion: The newest variant, currently entering service with the USMC. The CH-53K incorporates a fly-by-wire flight control system, composite rotor blades, and modern avionics — though many of its structural and mechanical components share lineage with earlier variants.
For the purposes of this guide, the primary focus is the CH-53E Super Stallion, as it represents the highest-volume maintenance and parts demand in the current fleet. However, many of the sourcing principles discussed here apply equally to legacy CH-53D support and to the emerging CH-53K sustainment market.
Why CH-53 Parts Sourcing Is More Demanding Than Most Platforms
The CH-53E is a mechanically complex aircraft. Its three-engine configuration, seven-blade main rotor system, four-blade tail rotor, and sophisticated transmission and gearbox arrangement mean that the number of unique, platform-specific components is substantial. Several factors make sourcing particularly challenging:
Low Production Volumes
Unlike the UH-60 Black Hawk — which has been produced in the thousands and serves with dozens of nations — the CH-53 fleet is relatively small. The USMC operates approximately 150 CH-53E airframes, and international operators add limited additional numbers. Low production volumes mean that the commercial supplier base for CH-53-specific parts is narrower, and parts are less likely to be held in depth by general aviation distributors.
High Part Criticality
As a heavy-lift aircraft designed for assault support, vertical replenishment, and recovery operations, the CH-53E operates under high loads and demanding environmental conditions. Many of its components — particularly in the rotor system, transmission, and hydraulic flight controls — are flight-critical, with correspondingly stringent certification and overhaul requirements.
Long Lead Times on Some Components
For complex assemblies with limited approved source options, lead times can extend to many weeks or months. Operators who rely on just-in-time sourcing for these items risk extended aircraft downtime when unplanned removals occur. Proactive inventory management and relationships with approved suppliers are essential risk mitigation strategies.
Export Control Complexity
The CH-53E is a military-specific platform subject to ITAR controls. All parts supplied for CH-53 maintenance — whether to U.S. or foreign military customers — must be handled through ITAR-compliant supply chains. Suppliers must hold appropriate export authorisations, and end-user documentation requirements are more extensive than for commercial aviation parts.
Key Component Categories for CH-53 Maintenance
While every aircraft system requires attention, certain component categories represent the most frequent maintenance activity and the most critical sourcing requirements for CH-53 operators.
Main Rotor System Components
The CH-53E’s seven-blade main rotor system is central to the aircraft’s performance. Rotor head components — including blade grips, pitch links, dampers, and hub assemblies — are subject to fatigue life limits and must be tracked carefully. Replacement intervals are defined in the applicable Maintenance Manual, and parts must meet exact dimensional and material specifications to ensure rotor balance and dynamic performance.
Transmission and Gearbox Components
The CH-53E’s combining gearbox, intermediate gearboxes, and main transmission are among the most mechanically demanding components on the aircraft. Gear sets, bearings, seals, and associated hardware all have defined replacement intervals and require precision manufacturing to exacting tolerances. Sourcing these components from suppliers without full traceability and certification documentation creates significant fleet risk.
Hydraulic Flight Control Components
The CH-53E uses a dual hydraulic system to power its flight controls. Servo actuators, hydraulic manifolds, reservoirs, and associated plumbing components are subject to both scheduled replacement and condition-based removal. Rotair’s hydraulic testing capabilities — including a Class 100,000 clean room facility and high-capacity test stands — support full acceptance testing of CH-53 hydraulic components before return to service.
Avionics and Electrical System Components
The CH-53E’s avionics suite includes flight management, navigation, communications, and defensive systems. Electronic assemblies — control panels, relay boxes, display units, and associated wiring harnesses — require specialist overhaul capability that goes beyond general electronic repair. Facilities must hold FAA Repair Station authorisation and have appropriate test equipment to validate avionics performance to military specifications.
Structural and Airframe Components
Structural repairs and component replacements on the CH-53E require parts that are dimensionally and materially identical to the original design. Panels, frames, fittings, and brackets sourced without proper certification risk introducing structural non-conformances that may not be immediately apparent but could compromise airworthiness over time.
Certification Requirements for CH-53 Spare Parts
Every part used in the maintenance of a CH-53 must meet specific certification requirements. These requirements exist to protect flight safety and to ensure that the aircraft continues to meet the design intent of the original type certificate. For military operators, these requirements are established through the applicable Technical Manual and contract documentation, and are enforced through the DLA procurement system and depot inspection processes.
FAA-PMA Approval
For parts supplied under civil aviation rules — including those used on civil-registered CH-53 derivatives — FAA Parts Manufacturing Approval (PMA) is the primary certification mechanism. PMA approval requires the manufacturer to demonstrate that the replacement part meets or exceeds the design, material, and performance requirements of the original. Rotair holds FAA-PMA approvals covering CH-53 components within its broader Sikorsky product approval portfolio.
AS9100 Rev D Quality Management
Suppliers to the CH-53 programme — whether through DLA contracts or direct sales — are expected to operate under a quality management system certified to AS9100 Rev D. This aerospace-specific quality standard covers design control, production process management, inspection and testing, nonconformance handling, and corrective action. Rotair maintains AS9100 Rev D and ISO 9001:2015 certification across its manufacturing and overhaul operations.
First Article Testing
For certain component categories, particularly those classified as flight-critical, DLA or the military service may require first article testing (FAT) before a new supplier can be added to the approved source list. FAT involves the submission of a production sample for independent testing and inspection against the applicable technical data package. Suppliers must demonstrate that their production process consistently produces parts that conform to all drawing and specification requirements.
Material Traceability
Full material traceability — from raw material certification through each production process to final test — is a non-negotiable requirement for CH-53 parts supply. Every Rotair shipment is accompanied by a Certificate of Conformance and supporting documentation that establishes an unbroken chain of custody from raw material to the customer’s receiving dock.
Common CH-53 Parts Sourcing Challenges and How to Manage Them
Limited Approved Source Base
For many CH-53-specific part numbers, the approved source base is narrow — sometimes just one or two manufacturers. When the primary source is experiencing production constraints or quality issues, finding an approved alternate can take months. Operators should proactively identify alternate approved sources for their highest-criticality, longest-lead-time parts before a shortage occurs rather than after.
Counterfeit Parts Risk
The combination of high part criticality, limited approved sources, and significant price pressure creates conditions where counterfeit parts can enter the supply chain. Parts sourced through brokers or distributors without traceable certification documentation carry a higher counterfeit risk. The only reliable mitigation is to source directly from approved manufacturers or authorised distributors who can provide full traceability documentation.
Obsolescence
As the CH-53E ages, some components designed for earlier avionics and mechanical configurations are approaching or reaching obsolescence. Sourcing these parts requires either locating remaining new-manufacture stock, overhaul of serviceable removed units, or engaging with a supplier capable of producing PMA-approved replacements. Rotair’s engineering capability and PMA approval process make it a viable partner for addressing CH-53 obsolescence challenges.
Export and ITAR Administration
For international CH-53 operators — including foreign military sales (FMS) customers — ITAR administration adds complexity and lead time to every transaction. Suppliers must hold the appropriate licenses, and end-user certificates must be completed correctly before shipment. Working with an experienced ITAR-compliant supplier significantly reduces the administrative burden and the risk of compliance failures.
How Rotair Aerospace Supports the CH-53 Fleet
Rotair Aerospace Corporation has supported the CH-53 programme — including both the CH-53D and CH-53E — as part of its broader Sikorsky heavy helicopter specialisation. Rotair’s CH-53 Super Stallion parts capabilities include:
- Stocked inventory: Rotair maintains stock of CH-53 components across key categories, enabling faster fulfilment than build-to-order alternatives for many standard parts.
- FAA-PMA approved components: Where PMA approval exists within Rotair’s portfolio, operators benefit from a certified alternative source that meets or exceeds OEM specifications.
- Overhaul and repair services: As an FAA Repair Station (Certificate #OHBR591K), Rotair is authorised to overhaul and repair Sikorsky helicopter components, including applicable CH-53 assemblies.
- Hydraulic component testing: CH-53 hydraulic components overhauled or repaired at Rotair pass through the company’s Class 100,000 clean room hydraulic test facility, ensuring full acceptance testing before shipment.
- DLA-qualified supplier: Rotair’s established DLA supply relationship and strong ABVS performance ratings mean that procurement through standard DLA channels is straightforward for applicable NSNs.
- Export compliance: Rotair’s blanket export compliance certificate and ITAR programme support compliant supply to international CH-53 operators through appropriate FMS or direct commercial sale channels.
Depot maintenance teams and fleet managers seeking specific CH-53 components can also review Rotair’s comprehensive parts and capabilities list or use the parts capabilities index to search by part number.
Best Practices for CH-53 Parts Procurement
Based on the sourcing landscape described above, the following practices are recommended for CH-53 operators and maintenance commands seeking to minimise parts-related downtime:
- Identify critical parts early: For each aircraft tail number, identify the components with the longest lead times and fewest approved sources. Develop a proactive procurement plan that keeps these items in stock or on firm order before they are needed.
- Qualify multiple sources: Where more than one approved source exists, maintain relationships with at least two suppliers. Single-source dependency creates significant risk when that supplier faces production or quality disruptions.
- Require full documentation on every shipment: Do not accept parts without a Certificate of Conformance and full traceability documentation. Incomplete documentation is a warning sign that should prompt further verification before installation.
- Use DLA-qualified suppliers: Suppliers with established DLA relationships and strong ABVS performance ratings have demonstrated sustained quality and delivery performance under government contract oversight — a more reliable indicator of capability than marketing claims.
- Plan for overhaul exchange: For complex assemblies such as hydraulic servos or avionics units, an overhaul exchange programme offers the fastest path to a serviceable replacement. Identify suppliers who offer exchange capability before an AOG situation forces a rushed decision.
Frequently Asked Questions
Q1: What is the difference between the CH-53D, CH-53E, and CH-53K?
The CH-53D Sea Stallion is the original two-engine, six-blade variant, largely retired from U.S. service but still operated internationally. The CH-53E Super Stallion is the primary current U.S. Marine Corps heavy-lift helicopter, featuring three engines and a seven-blade rotor for significantly greater lift capability. The CH-53K King Stallion is the newest variant, now entering USMC service with fly-by-wire controls, composite rotor blades, and modernised avionics.
Q2: Does Rotair supply parts for both the CH-53D and CH-53E?
Yes. Rotair supports the CH-53 family including legacy CH-53D components for international operators and CH-53E Super Stallion parts for USMC and allied customers. Contact Rotair directly with your specific part number or NSN to confirm availability and lead times.
Q3: Are CH-53 parts subject to ITAR controls?
Yes. The CH-53 is a military platform and its spare parts are generally subject to International Traffic in Arms Regulations (ITAR). All suppliers must hold appropriate export authorisations, and customers — particularly international operators — must provide end-user documentation before shipment. Rotair maintains a compliant ITAR programme and blanket export compliance certificate covering its standard product range.
Q4: How do I verify that a CH-53 part is from an approved source?
The approved source list for a given National Stock Number (NSN) can be verified through DLA’s Federal Logistics Data system or the Aviation Master Solicitation. For civilian-registered aircraft, the FAA’s PMA database can be consulted to confirm which manufacturers hold approval for a specific part number. When in doubt, request a Certificate of Conformance and full traceability documentation from the supplier before accepting delivery.
Q5: What is the fastest way to source an urgent CH-53 part from Rotair?
For urgent or AOG requirements, contact Rotair directly by phone at (203) 576-6545 or by email at webinquiries@rotair.com with the part number or NSN. Rotair’s team can check stock availability immediately and advise on the fastest fulfilment path, including exchange availability for overhauled assemblies.
Source CH-53 Super Stallion Parts From a Specialist You Can Trust
The CH-53 Super Stallion demands precision-engineered, fully certified components from suppliers with the quality systems and technical depth to back up every shipment. With decades of Sikorsky heavy helicopter experience, FAA-PMA approvals, AS9100 Rev D certification, and an established DLA supply relationship, Rotair Aerospace Corporation is one of the most capable sources in the market for CH-53 spare parts and overhaul services.
Explore Rotair’s CH-53 Super Stallion parts capabilities, browse the parts and capabilities list, or request a quote today. You can also reach the Rotair team directly at (203) 576-6545 or webinquiries@rotair.com.
